1. Product Model: SZ10-TA5-DIM
2. Input Voltage: 12V/24V
3. Output LED voltage: 15v-60V,30-60V
4. Application areas: Wireless solar lighting
5. Software: Smart Lighting Management Platform
6. Communication Protocols: ZigBee
7. data-communication interface type: RS232/RS485

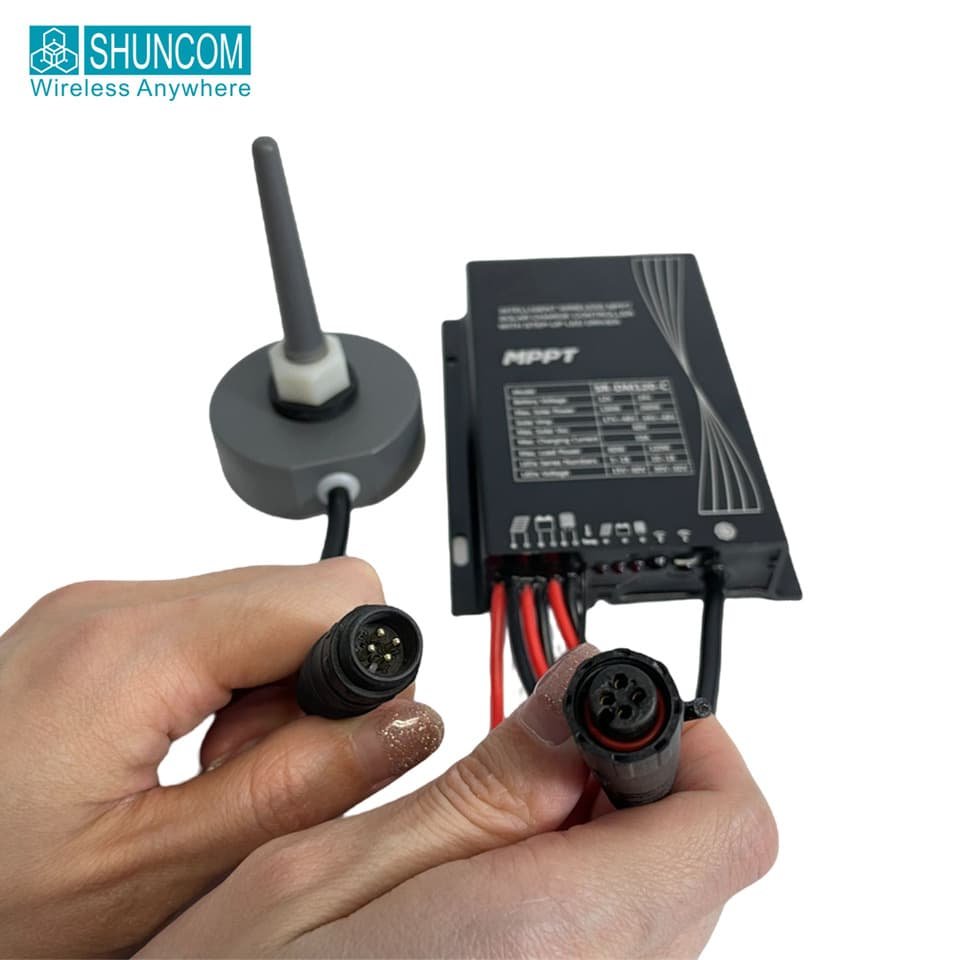

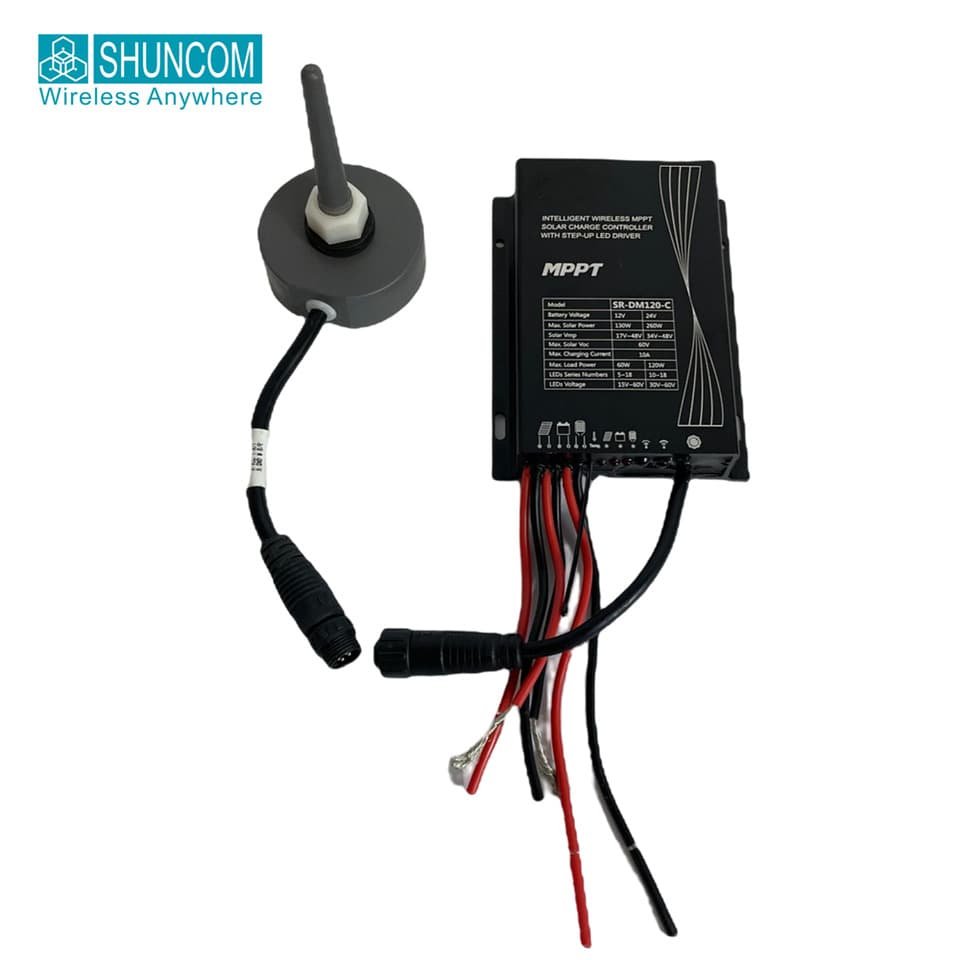

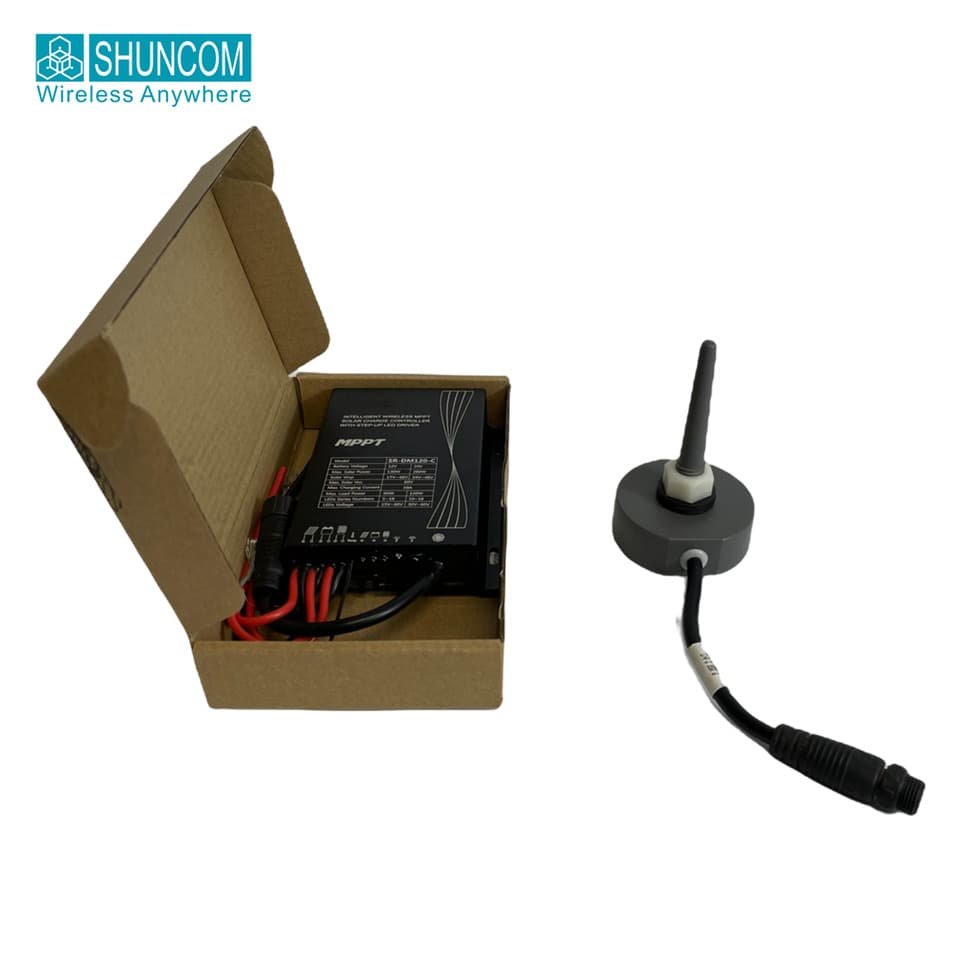

Here our new wireless solar lighting system includes several key components, such as the SZ10-TA5 and the MPPT charge module. These two modules are connected via RS485 interface, then the solar light system is come true inter-communication by Zigbee and medium point station.

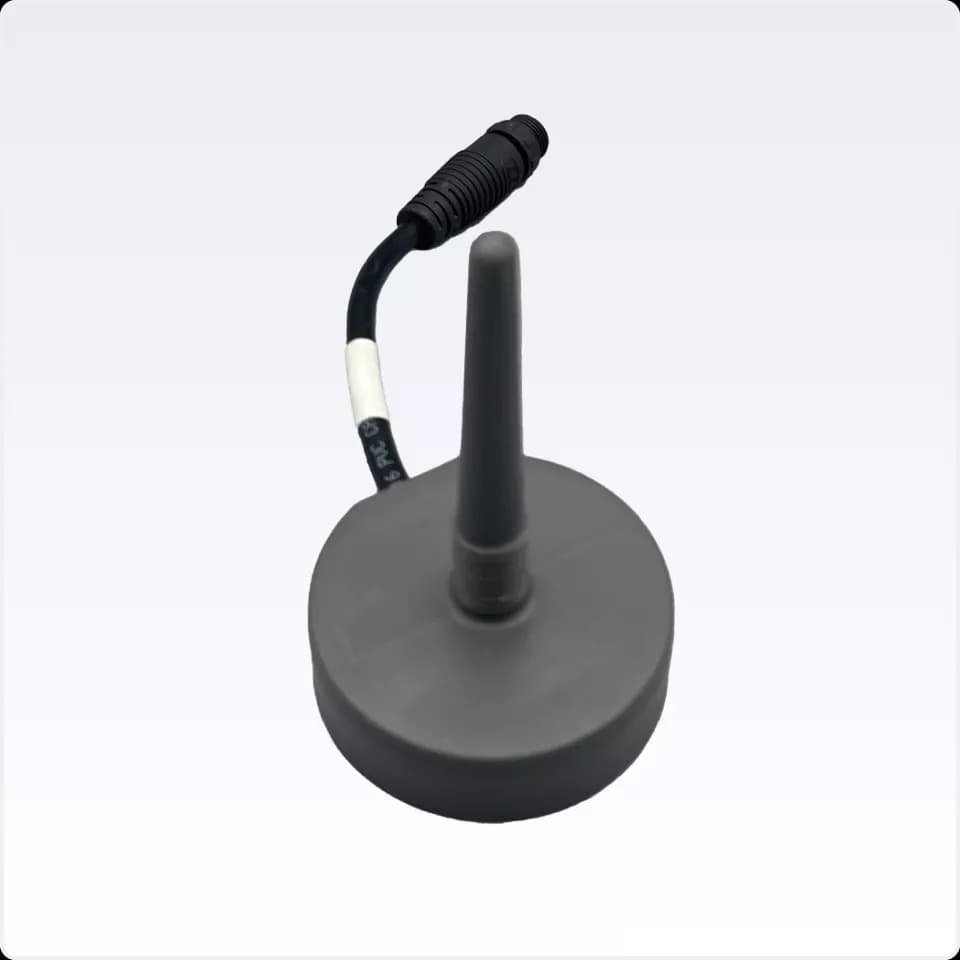

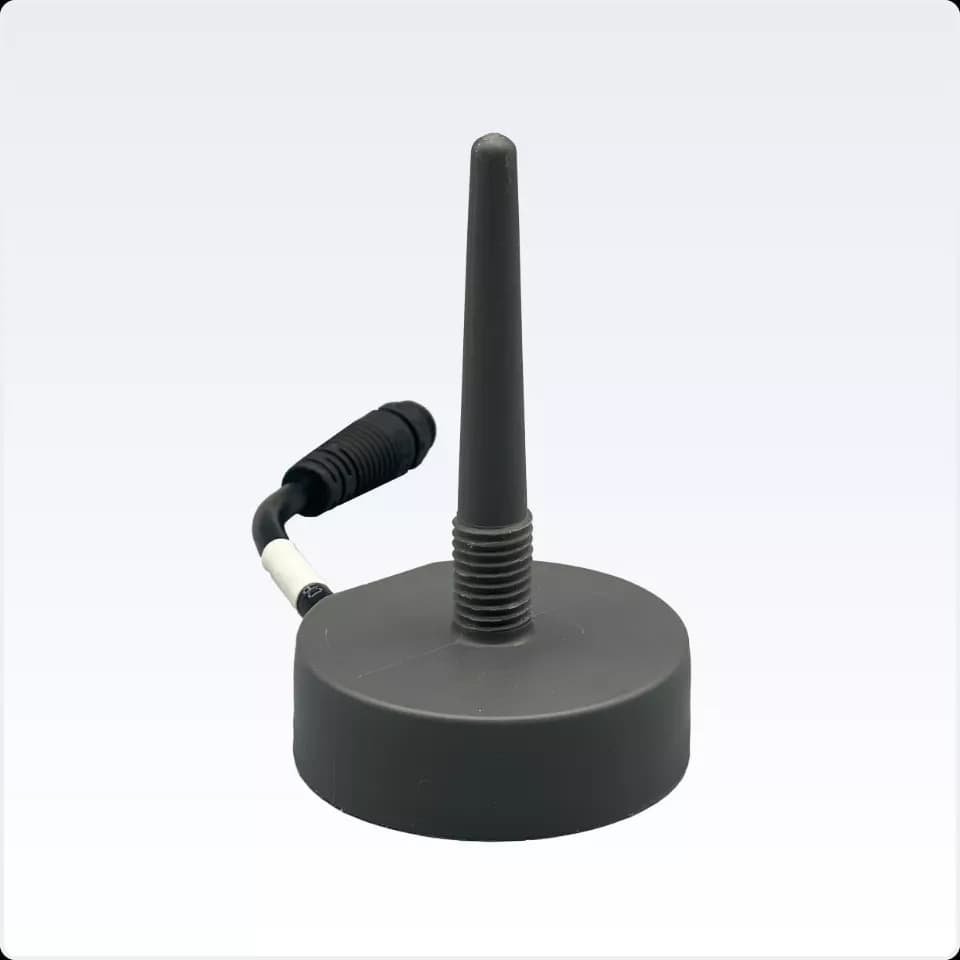

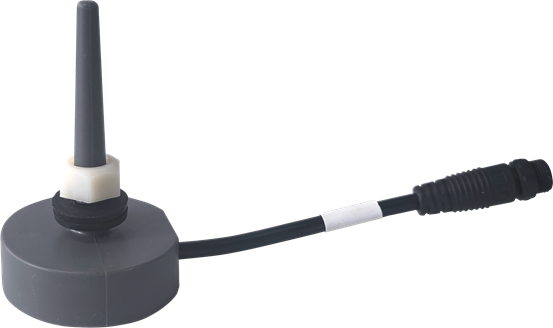

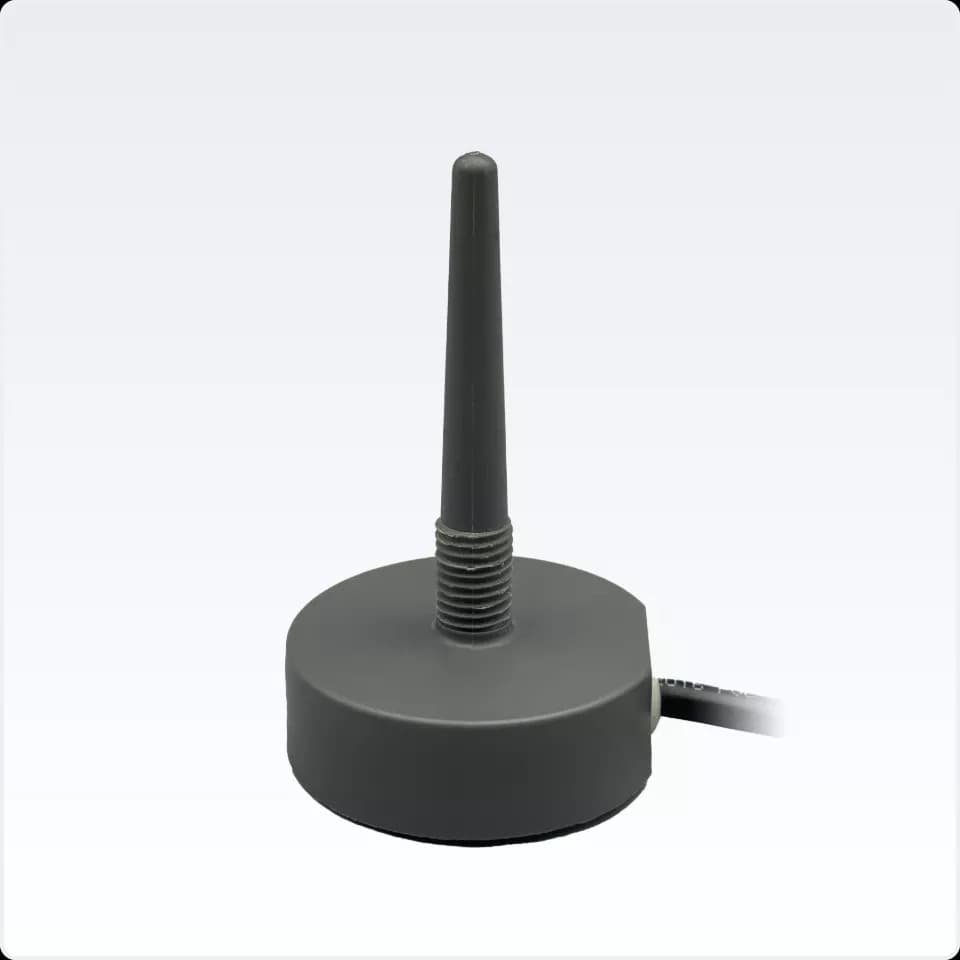

SZ10-TA5, here light controller is specially developed for control and management of solar lighting. Its core chip fully development by our tech-team, and can communicate with gateway and network server so that realize the functions of lamp on/off control, dimming, current and voltage collection, etc.
The waterproof MPPT is a constant current control module, and it integrates Solar Maximum Power Point Tracking charging management, LED boost constant current drive, remote networking communication and other functions in one. It is suitable for lead-acid batteries, lithium batteries, gel batteries, etc. tips, The MPPT tracking efficiency can reach 99.9%, and compare with PWM tradition solar charging efficiency is higher 15%-20%.
| Dimensions | 118.3×42.1×30(mm) |
| Item | Value |
| Supply Voltage | DC4-6V/6-24V |
| Transmission Distance | 400M (in ideal working environment) |
| Wireless Channels | 16 |
| Working Temperature | -40℃ ～ +75℃ |
| Transmitting Power | 18dBm |
| Rx Sensitivity | -104dBm |
| Interface Type | RS485/RS232 (Modbus protocol) |
| Modulation Mode | DSSS |
| Wireless Communication Speed | Fixed at 250K |
| Channel Detection | CSMA/CA |
| Network Structure | Star Network |
| Output LED Voltage | 15-60V, 30-60V |
| Solar Panel Typical Voltage | 17-60V,34-60V |
| The Maximum Charge Current | 10A, 15A |
| Maximum LED Power | 60-160W |
| Support communication | LoRa,Zigbee,Cat.1/4G |
| Max Solar panne Power | 120-140W |
| Load Voltage | 15-75v |
| Load Current | 50-560mA |
| Sleep Power Consumption | <=1mA |
| Radio Frequency | 2.4G |
| Manager system | Solar Maximum Power Point Tracking charging management (MPPT) |
| Product Output | Single-phase AC |
| Abnormall protection | The controller support much protection functions. Such as over-voltage, under-voltage, over-current, short-circuit, surge and ESD. |
| Ip Rating | IP67 |
| Antenna Gain | 3dB |
| Antenna Type | External |
| Antenna VSWR | <=1.5 |
| Data Collection | U, I, P, Q, COSΦ |
| Rated Output Current | 2A, 400w Max(led lamp) |
| Certificate | CE,RoHS,EMC |

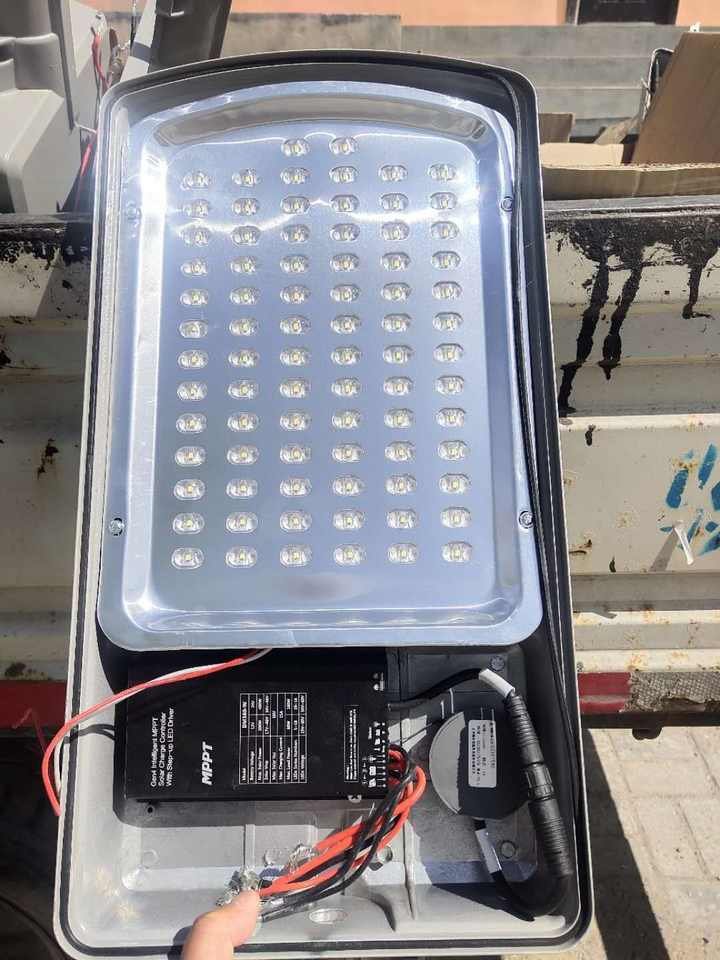

Solar street light MPPT charging system solutions are widely used in the lighting of urban and rural roads, highways, water conservancy dikes, bridges, islands, parks, industrial areas, urban squares, residential quarters, parking lots, and other places.
The system is mainly composed of photovoltaic modules, MPPT solar street light controllers, batteries and LED lamps. Solar street light MPPT charging system solution is a solution to outdoor lighting problems using MPPT charging method. The MPPT tracking efficiency can reach 99.9%, which significantly improves the energy utilization efficiency of the photovoltaic system, which is about 15% to 20% higher than the traditional PWM charging efficiency, which solves the problem of energy waste caused by the low charging efficiency of the traditional controller.
Using advanced digital power technology, the circuit energy conversion efficiency is as high as 96%. Using the matching remote control SR-CU-ALL, using external transmission technology, you can directly debug various parameters in the solar street light controller, which is convenient and quick.
Main feature
◆ Using MovingTrack MPPT maximum power tracking technology, higher tracking efficiency and faster speed;
◆ Both lead-acid battery and lithium battery are applicable, operating parameters can be set by remote control;
◆ Using Ultra-Green power control technology with extremely low power consumption and sleep current
◆ Lead-acid battery multi-stage constant voltage charging with temperature compensation;
◆ Battery charge and discharge high and low temperature protection, with operating temperature settable;
◆ 10-period programmable load power/time control;
◆ A variety of intelligent power modes are available for choice, with load power adjustable automatically according to the battery level;
◆ High precision digital step-up constant current control algorithm, ensuring high efficiency and high constant current accuracy;
◆ Infrared wireless communication, allowing for setting/reading parameters, reading status, etc;
◆ Multiple protections such as battery/PV reverse polarity protection, LED short-circuit/open-circuit/limited power protection, etc;
◆ Full aluminum housing, IP67 waterproof rating, applicable to a variety of harsh environments.
Guangzhou Phoenix Mountain Tunnel Lighting Project from 2023 year
Dongguan Huancheng High Speed Lighting Single Light Control Project from 2023 year
Street lighting intelligent lighting renovation project around Beijing Bird’s Nest from 2022 year
Anhui Maanshan Factory Intelligent Lighting Reconstruction Project from 2022 year
Nanchong City “One River and Two Banks” Landscape Lighting Project
Beijing Capital Normal University wisdom light pole project
Here these communication infrastructure inter-data by standard international protocol.
