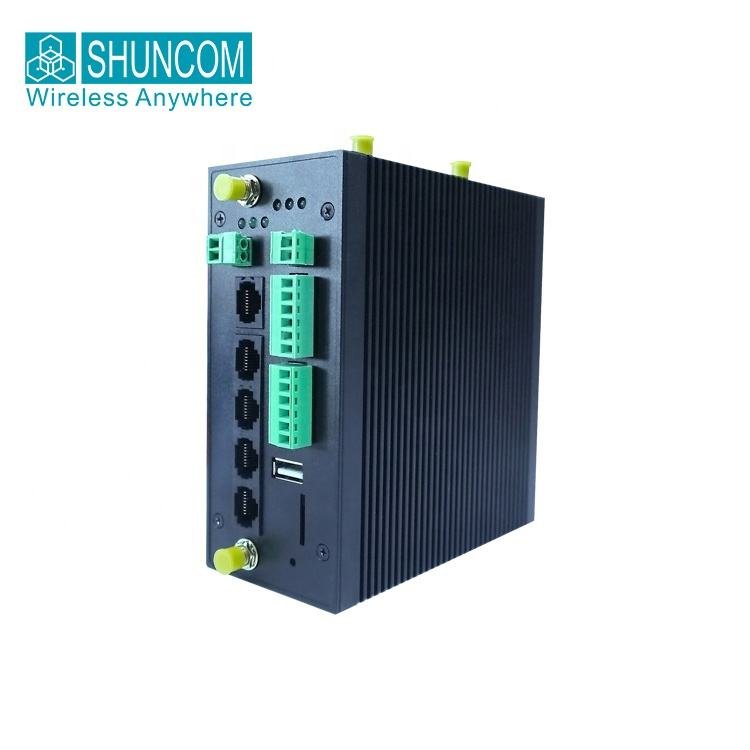

1. Product Model: SZ11-GW Series
2. Input Voltage: 9-12V DC/ 2A
3. RST: Reset button, long press 10s to restore factory settings
4. Application areas: Wireless solar lighting
5. Software: Smart Lighting Management Platform
6. Communication Protocols: ZigBee/LoRa
7. Rich Protocols: Transparent transmis-sion /MQTT/Modbus RTU dconvet to TCP

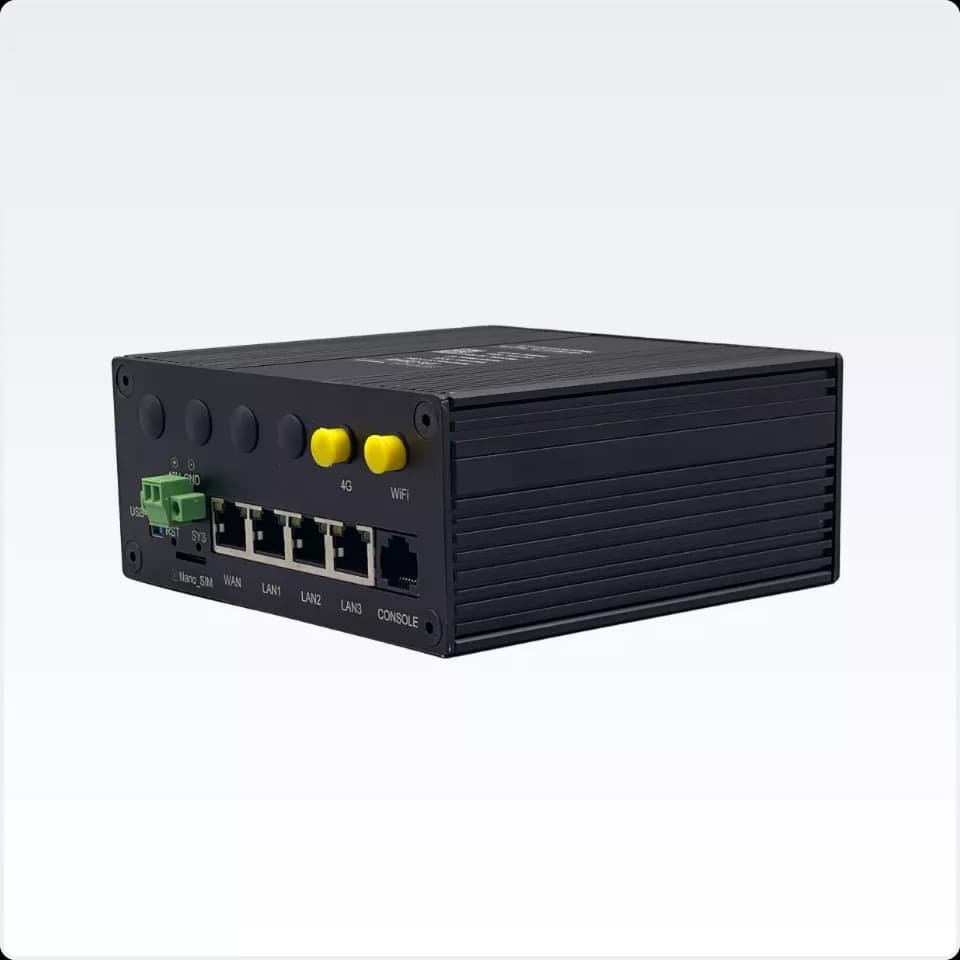

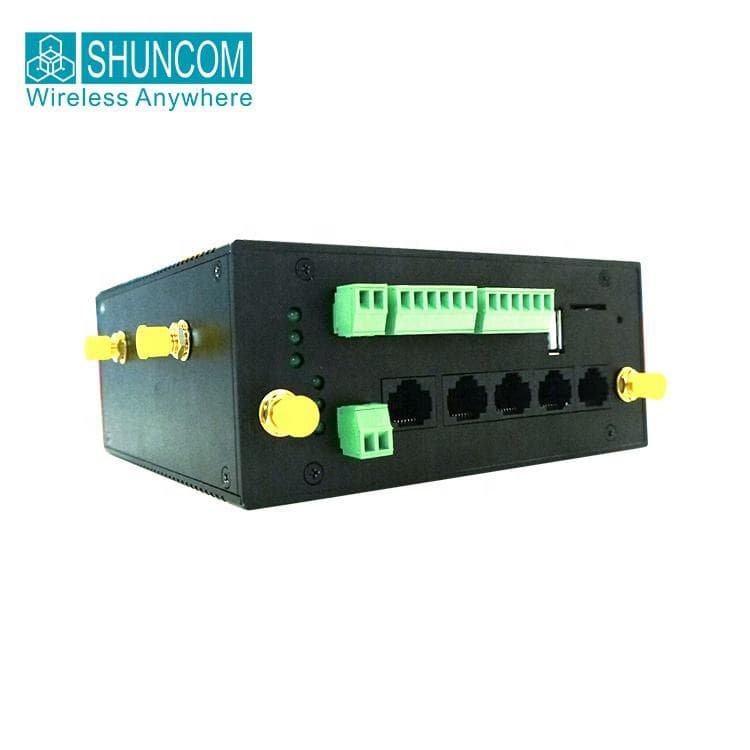

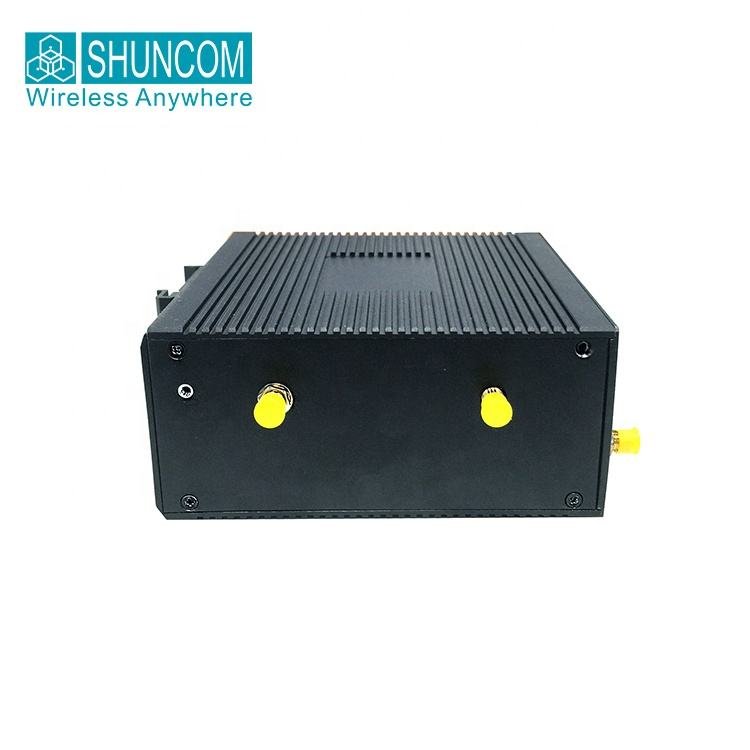

Here is new type SZ11-GW series gateway communication, so it help me connect between remote service or cloudy data century and hotspot light fixture on the distribution map areas. compare with SZ10-GW circuit control concentrator and outdoor waterproof gateway SZ11LR-GW series, this can support multi-interface, also support 32 bit processor and industrial-design grade wireless communication module. multi-interface like as 3G/4G/5G,and 10/100/1000Mbps WAN port x1, 10/100/1000Mbps LAN port x3.
This gateway device inside key communication definition, 1x serial port (RS485), 1x USB2.0 port, 3x Ethernet LAN ports, 1x Ethernet WAN port. The 3 LAN ports support PSE function, 802.3AT standard, and the maximum power output of a single port is 30W. Modular hardware is used inside, which can quickly adapt to different hardware according to different user needs.
It can be connected to serial devices, Ethernet devices and Wi-Fi devices at the same time, which provides a perfect platform for IoT applications. A 3TOPS computing power card is optional to be assembled. And the system (Rulr lighting systrm)is open, users can install Docker images or video analysis algorithms by themselves.
Shuncom capable To meet industries and commercial ares application. such as self-service terminal industry, smart grid, intelligent transportation, supply chain automation, industry automation, intelligent building, fire protection, environmental protection, smart medical treatment, smart lighting, smart agriculture and coal mines, oil and other occasions.
Feature
- Support 4G/5G, Ethernet port access to the Internet, multi-network at the same time online.
- Stable full Netcom speed experience, fully compatible with major operators’ 3G/4G/5G network (4G module or 5G module can be selected according to requirements, 4G module supports 3G/4G communication, 5G module supports 3G/4G/5G communication).
- data backup, data storage when the network is disconnected, or data transmission resume after network recovery.
- support rich protocol, support transparent transmission, MODBUS RTU switch TCP and MQTT.
- Standard DIN35 rail installation, also supports wall-mounted installation, suitable for different application scenarios
- Optional LoRaWAN frequency bands: CN470MHz, IN865MHz, EU868MHz, RU868MHz, US915MHz, AU915MHz, AS923MHz, KR923MHz;

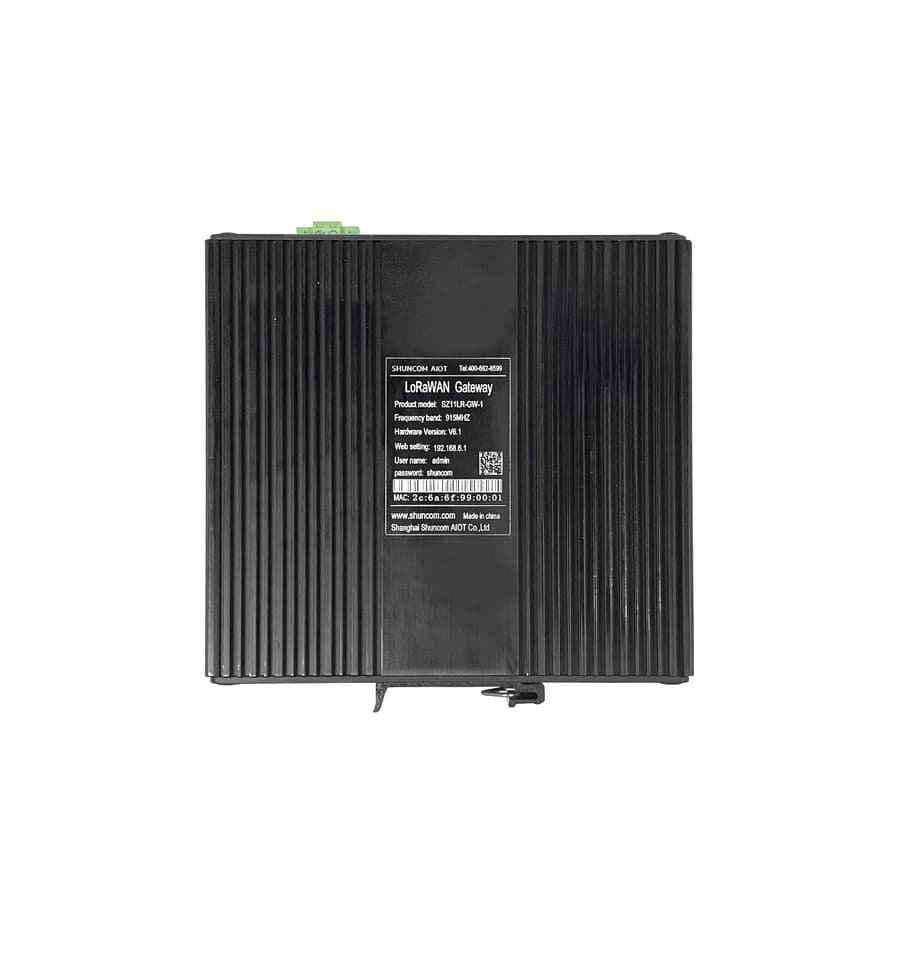

Gateway Kay Parameter Definition

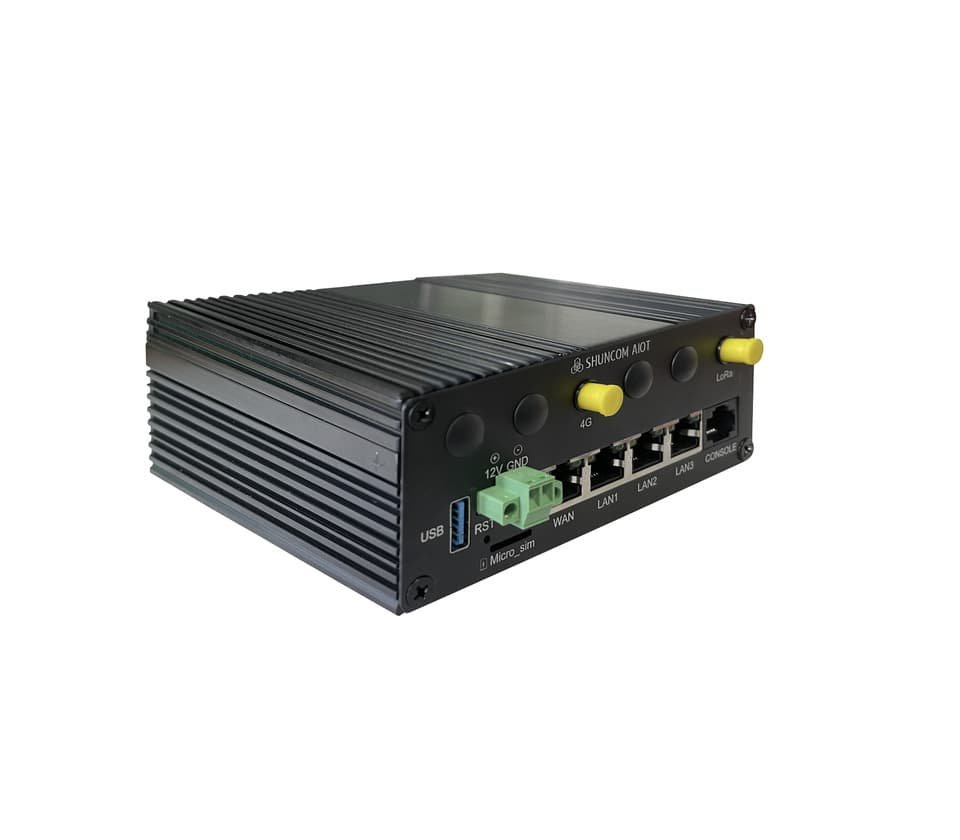

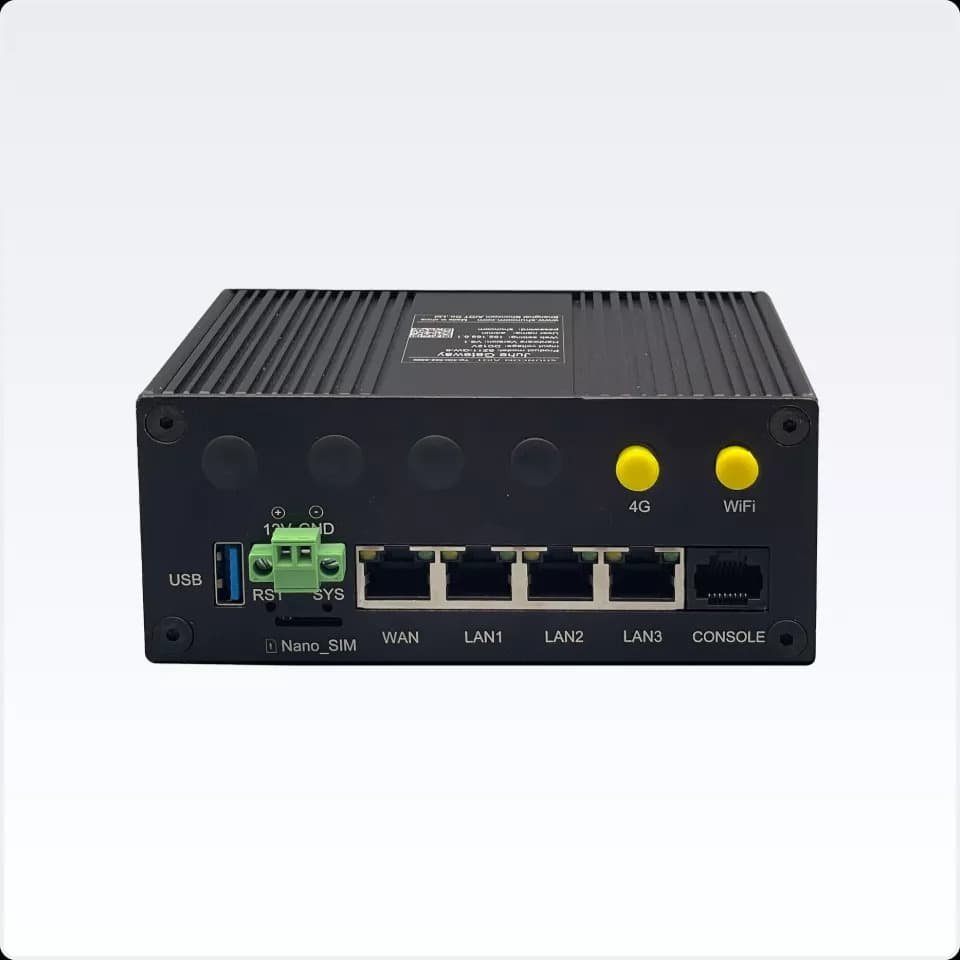

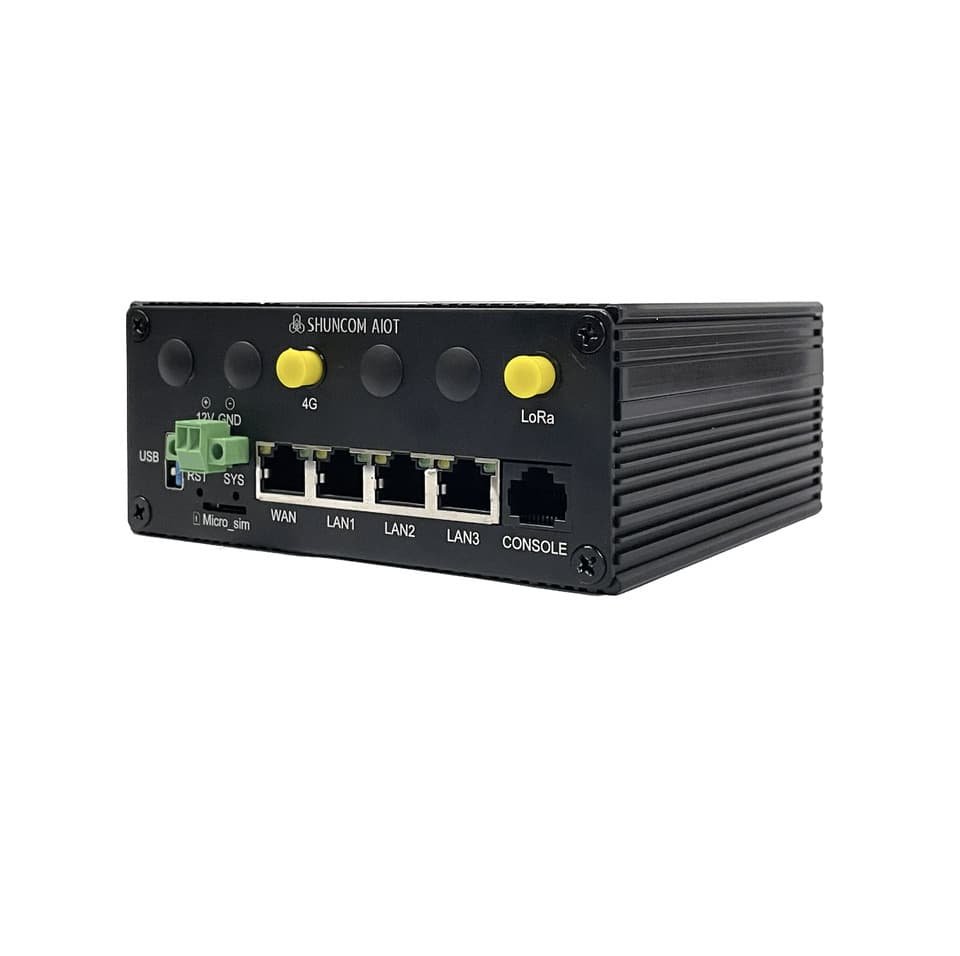

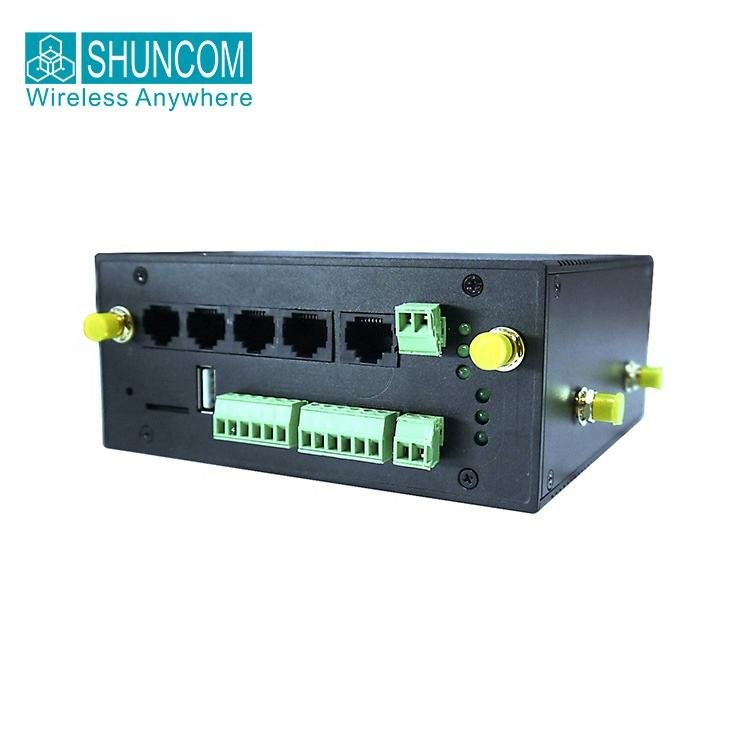

Interface Description Remark 12V,GND DC12V/2A Power supply Do not reverse polarity Mrico_com Insert the sim card as direction shown Press to lock USB SB2.0, support external expansion devices WAN 0/100/1000Mbps, Uplink Ethernet access LAN1 0/100/1000Mbps, Downlink Ethernet access Optional support for PSE LAN2 0/100/1000Mbps, Downlink Ethernet access Optional support for PSE LAN3 0/100/1000Mbps, Downlink Ethernet access Optional support for PSE Console Debug interface, include one RS485 port Serial port debug 4G 4G antenna 5G optional RST Reset button, long press 10s to restore factory settings LoRa optional SYS System operating indicator 1. always on when powered, functioning normally, and connected to the Internet; 2. flashes once every 1s when not connected to the Internet; 3. flashes 3 times in 1s when connecting to the Internet. pleas consult shuncom before reste
| Others | Dimensions | 147mm*147mm*58.5mm |
| Regional Frequency bands | EU868 US915 AS923 | |
| Dimension | 147×58.5×147 | |
| rich protocol | Transparent transmis-sion /MQTT/Modbus RTU dconvet to TCP | |
| Working temperature | -20~+80ºC | |
| Storage temperature | -40~+85ºC | |
| Relative humidity | ≤95%(No condensation) | |
| Certificate | CE/FCC |
——————————————————————————————————————————————————————————————————————
| WiFi | tandard and frequency band | Support IEEE802.11b/g/n standard |
| Theoretical bandwidth | UP TO 300Mbps | |
| Transmit power | 20dbm | |
| System | ||
| CPU | 32-bit | |
| FLASH | 128M | |
| DDR2 | 128M |
———————————————————————————————————————————————————————————————————————
| NPU (Optional) |
CPU | Dual-core Cortex-A53 processor, Highest main frequency 1.4GHz |
| Computing Power | 3TOPS Support IN8/INT16/FP16 Support TensorFlow, Caffe, ONNX and Darknet model 1080p@60fps H.264 decode 1080p@30fps H.264 decode |
|
| System | Debian10 | |
| RAM | 1GB | |
| EMMC | 8GB |
Shuncom AIOT system is based on advanced wireless communication technology and adopts a unified cloud platform for efficient management. Without changing the structure of the lamp or adding wiring, it can realize remote switching, dimming, monitoring and circuit control of a single lamp, and support longitude and latitude scheduled control, every other lamp lights on, etc. In addition, dimming can be realized based on pedestrian 35 flow, so as to achieve energy saving, environmental protection and intelligent control.
System Features
- Multiple communication technology available, including zigbee, NB-IoT, LoRa, Cat.1, 5G;
- No need pre-arrange wiring, easy installation, short commissioning time, prior investigation of the project site is not required, plug and play;
- Long communication range, strong anti-interference, flexible networking, can realize data transmission of one point to multi-points devices and multi-points to multi-points devices, can form star network, mesh network, etc.
- Rich expandability, can be connected via Zigbee. Rain and snow sensor, illuminance sensor , vehicle flow sensor, switching value sensor, 4-20mA sensor (data collection), 0-5V sensor (data collection), etc.
- The platform uses B/S architecture, provide service interfaces based on Web Service. Support access of large capacity wireless street lighting, provide control and management function.
- intelligent strategy management function, realize on-demand control or automatic control as per customer needs.
System function description
- Self-diagnosis and self-recovery.
- Remote or local automatic dimming of street lamp to save energy.
- Support GPS, visual GIS to judge different zone lighting status.
- Monitor lamp data, including current, voltage, power, etc.
Guangzhou Phoenix Mountain Tunnel Lighting Project from 2023 year
Dongguan Huancheng High Speed Lighting Single Light Control Project from 2023 year
Street lighting intelligent lighting renovation project around Beijing Bird’s Nest from 2022 year
Anhui Maanshan Factory Intelligent Lighting Reconstruction Project from 2022 year
Nanchong City “One River and Two Banks” Landscape Lighting Project
Beijing Capital Normal University wisdom light pole project
Here these communication infrastructure inter-data by standard international protocol.
