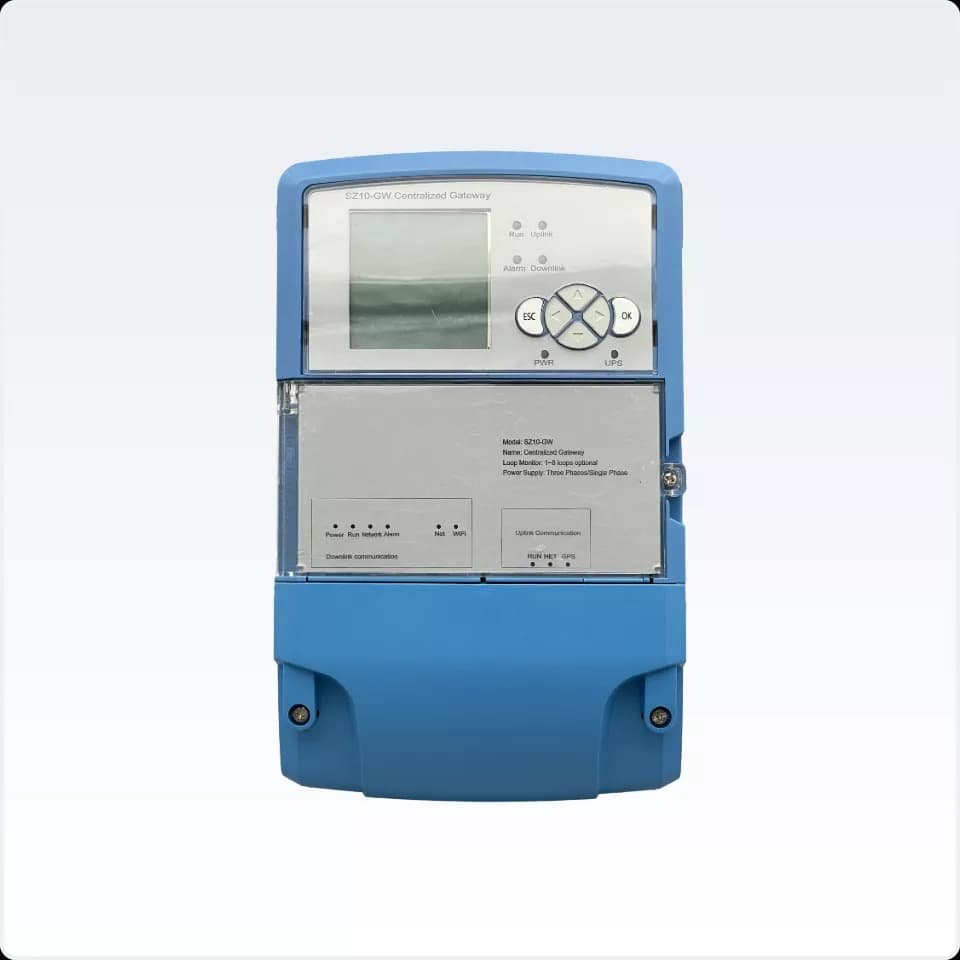

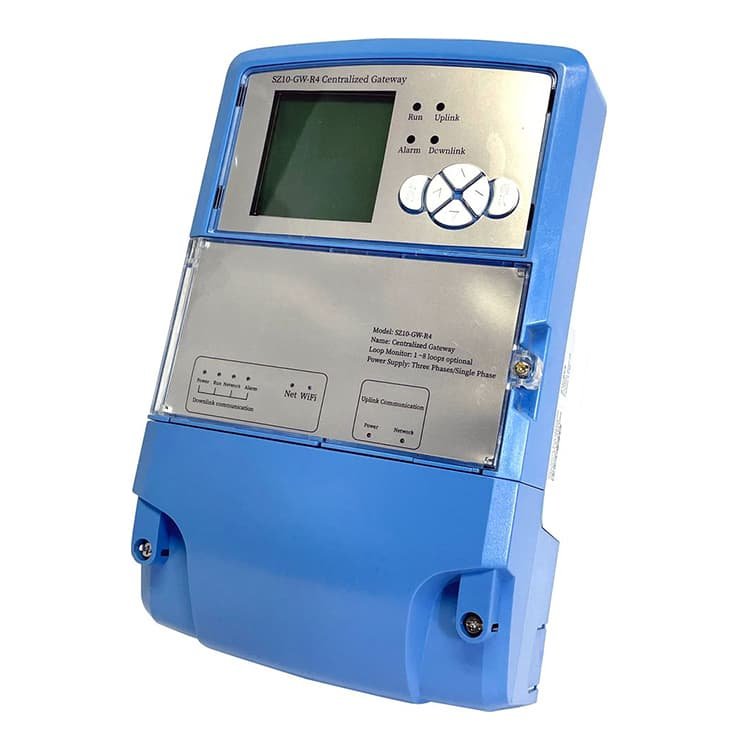

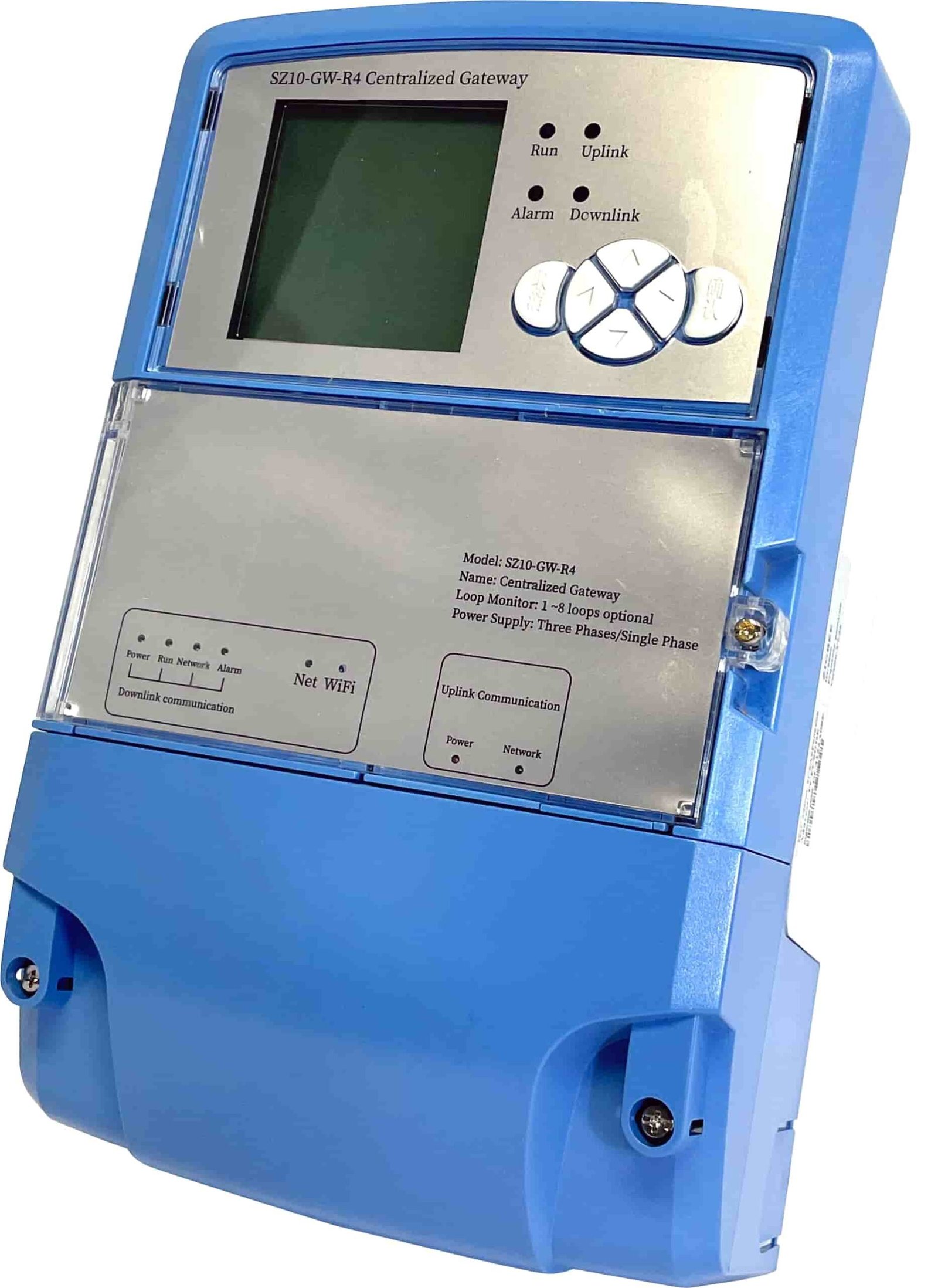

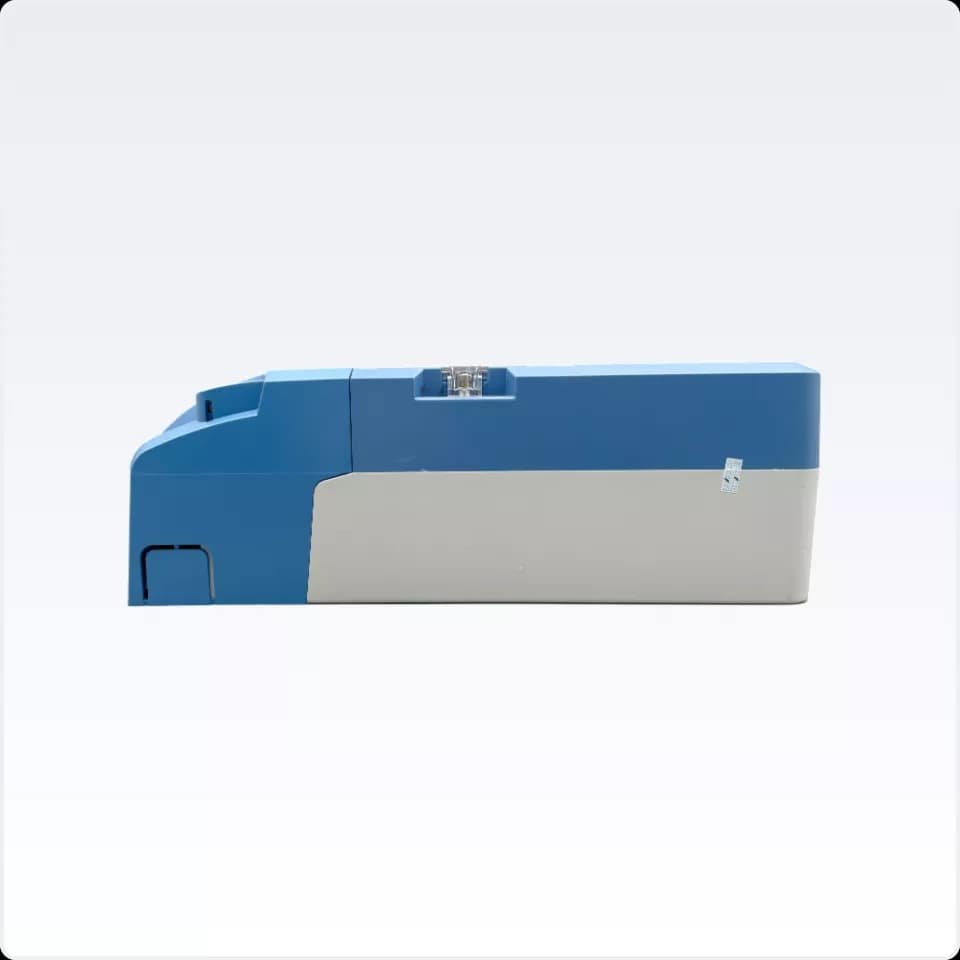

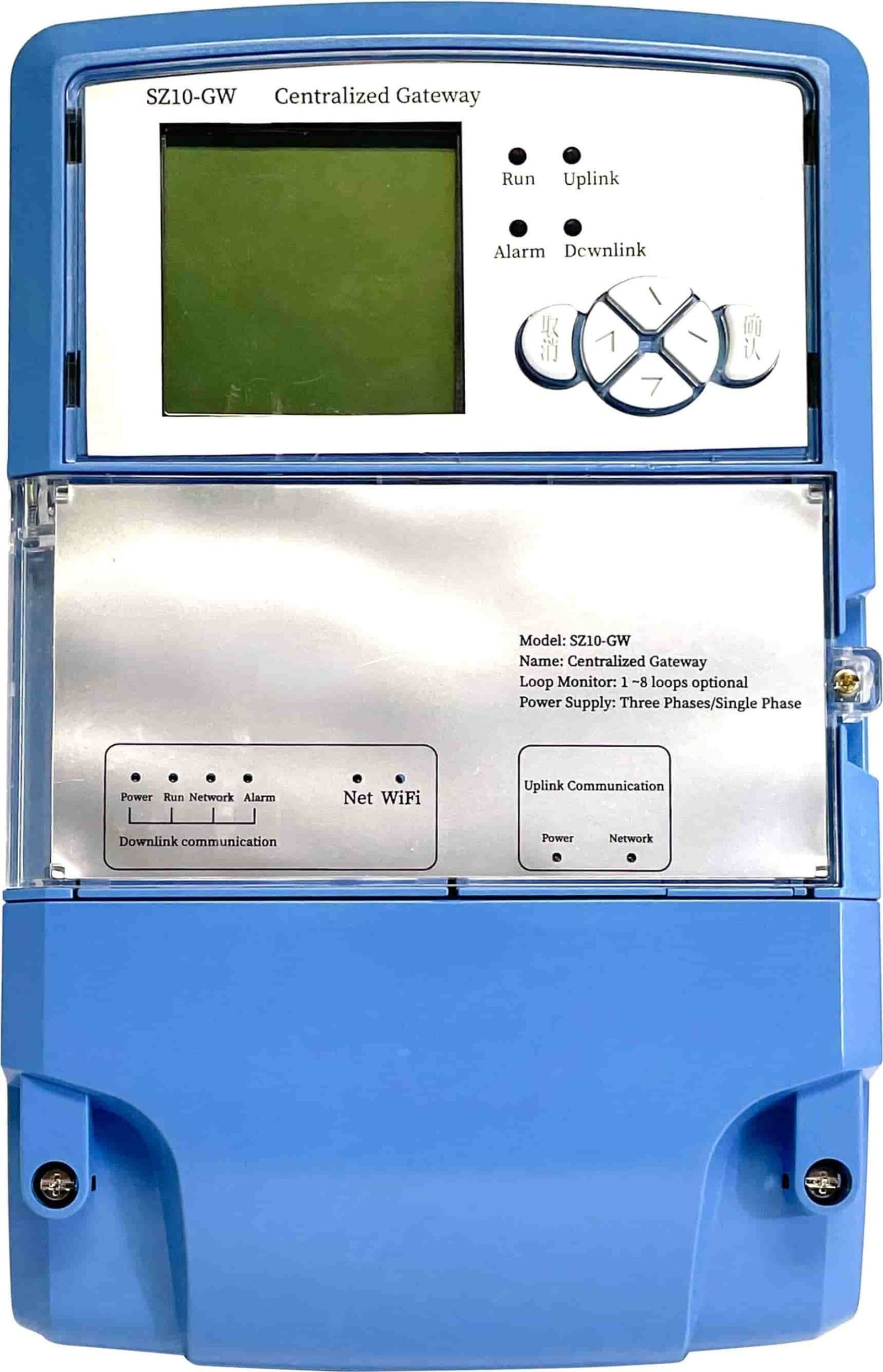

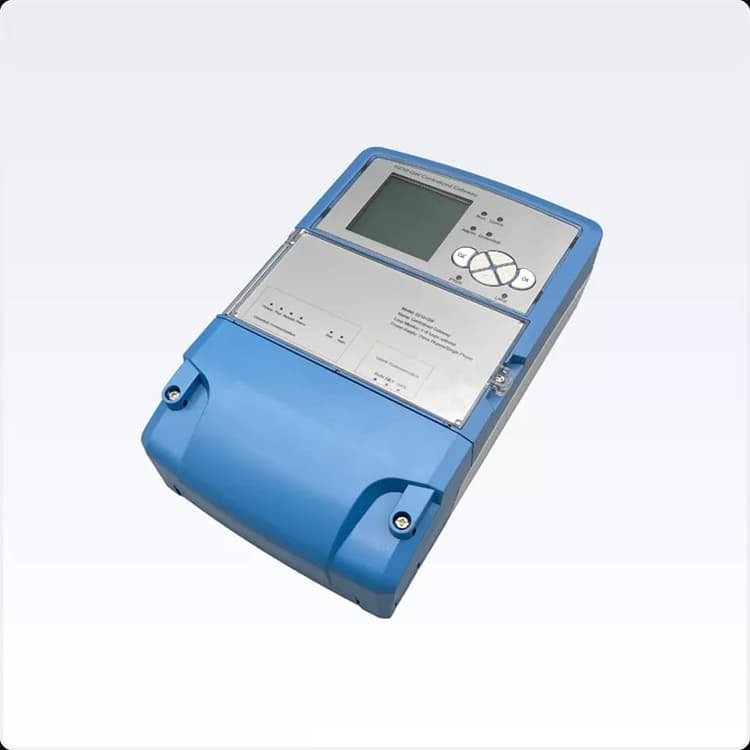

The SZ10-GW CBOX gateway is a relay device at the heart of the intelligent lighting control system developed by Shuncom Technology. It features a Zigbee wireless communication module, a high-performance ARM chip and a 4G communication module, all of which were developed in-house.

The lamp controller establishes a connection with the SZ10-GW CBOX via Zigbee or LoRa and uploads the data to the remote server via the 4G module. The system can collect real-time data on the status, location and internal electronic equipment parameters of the lamp, as well as lighting brightness, air quality indicators, pedestrian and vehicle flow and abnormal alarm data. It can also provide multi-dimensional reporting and intelligent management and control of remote lamps and lanterns.

It can realize the data collection of three-phase electric or single-phase electric current (three-way), voltage (three-way), active power, reactive power, power factor, temperature, etc. It has 1~8 way loop switch control.

The timing policy delivered by the receiving server is stored locally, and the data to be queried by the server is reported; local or remote query and configuration can be implemented; at the same time, policy query and modification can be implemented; manual real-time control commands and query commands can also be performed.

Product Feature

• Collection of current, voltage, power and other data of three-phase circuit.
• Standard 4~8 loops switch control, support extension to maximum 36 loops control.
• Current collection of standard 4~8 loops with ±3% accuracy, support extension to maximum 36 loops current collection.
• Receive time strategies sent by the server and store locally in the gateway, report data queried by the server; Local & remote query and configuration.
• Query and modification of strategies; Support manually sending real-time control and query commands.

• Independent timing control of each loop, time configurable.
• Group dimming control – multicast control of SZ10 series lamp controllers.
• Latitude and longitude control – Automatic control based on latitude and longitude.
• Status signal indicator – indicates real-time working status of the gateway.
• By integrating a variety of sensors (temperature, rain, snow, light, etc.), it can analyze the local weather conditions and environmental conditions, and thus automatically control the switch and brightness of lights.

• Current collection device to collect loop current via RS485 serial port.
• Leakage alarm sensor connected via 485 bus, support 8-channel leakage current collection and reporting, accuracy ±5%.
• Field maintenance mode – under maintenance mode, any remote control commands would not be responded, which ensure safety.
